Large-scale wood processing plant dust collection and filtration system

Chi tiết sản phẩm

Nguồn gốc: Trung Quốc

Hàng hiệu: QiaoDa

Chứng nhận: CE

Số mô hình: QDMC-600

Điều khoản thanh toán và vận chuyển

Số lượng đặt hàng tối thiểu: 1

Giá bán: 49800

chi tiết đóng gói: theo yêu cầu

Thời gian giao hàng: 20 ngày làm việc

Điều khoản thanh toán: T/T

Nhận được giá tốt nhất
Làm nổi bật:

industrial dust collection system for wood processing

,

large-scale wood dust filtration system

,

wood plant dust collection with warranty

Tên sản phẩm:
Hệ thống thu gom bụi công nghiệp
Loại tiếp thị:
Sản phẩm hot năm 2026
Đặc trưng:
Thiết kế mới lạ
Vật liệu:
thép carbon hoặc thép không gỉ
Khối lượng không khí:
314000 m3/giờ
Tốc độ lọc:
1.0M/phút
Phạm vi nhiệt độ hoạt động:
-20°C đến 120°C
tùy chỉnh:
chấp nhận
Hiệu quả lọc:
99,99%
Tình trạng:
Mới
kiểu cài đặt:
Trong nhà/ngoài trời
Lọc phương tiện:
Túi vải hoặc phần tử lọc
kiểu:
Máy hút bụi
Loại bộ lọc sạch:
Thổi bụi tự động
Tên sản phẩm:
Hệ thống thu gom bụi công nghiệp
Loại tiếp thị:
Sản phẩm hot năm 2026
Đặc trưng:
Thiết kế mới lạ
Vật liệu:
thép carbon hoặc thép không gỉ
Khối lượng không khí:
314000 m3/giờ
Tốc độ lọc:
1.0M/phút
Phạm vi nhiệt độ hoạt động:
-20°C đến 120°C
tùy chỉnh:
chấp nhận
Hiệu quả lọc:
99,99%
Tình trạng:
Mới
kiểu cài đặt:
Trong nhà/ngoài trời
Lọc phương tiện:
Túi vải hoặc phần tử lọc
kiểu:
Máy hút bụi
Loại bộ lọc sạch:
Thổi bụi tự động

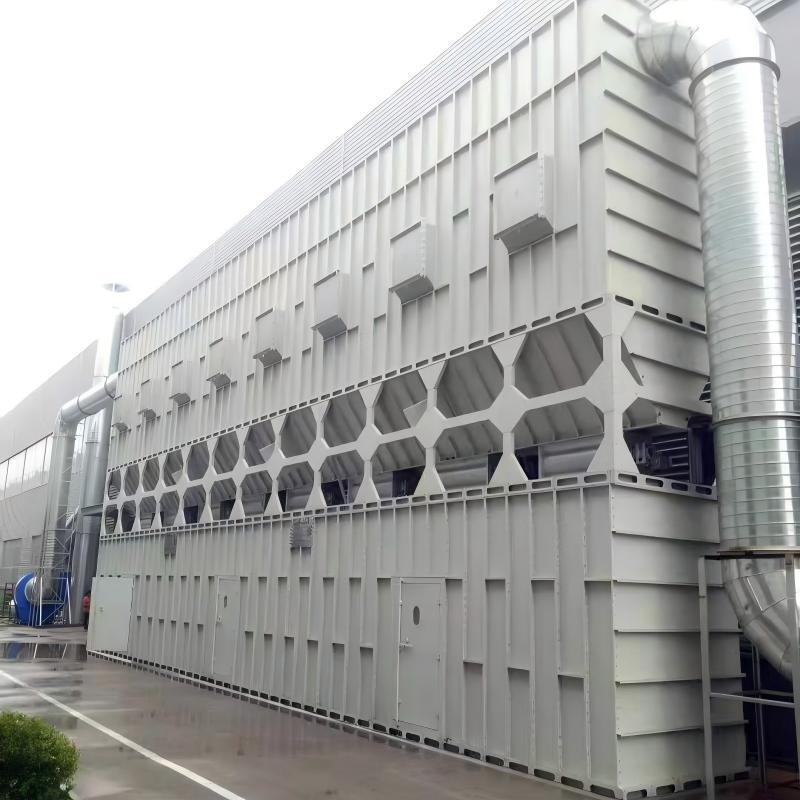

Large-scale wood processing plant dust collection and filtration system
Large-Scale Wood Processing Plant Dust Collection and Filtration System
Wood processing operations generate substantial amounts of sawdust, wood chips, and flammable fine wood dust, creating workshop pollution, safety hazards, and mechanical wear. Our professional centralized dust collection and filtration system is custom-engineered for wood cutting, sanding, polishing, and milling applications. Featuring high suction efficiency, explosion-proof performance, and automatic pulse cleaning functions, this system delivers efficient workshop air purification and compliant exhaust emissions.
Technical Specifications
Product Name Woodworking Dust Collector
Model Customized
Motor Power Customized
Air Flow Customized
Static Pressure Customized
Filtration Area Customized
Filter Bag Quantity Customized
Working Voltage 380V/220V 50/60Hz
Noise Level ≤75dB
Dust Removal Efficiency ≥99.5%
Application Woodworking Factory, Furniture Processing, Wood Cutting & Polishing
Dimension Customized
System Operation Process
Negative Pressure Air Suction The system utilizes negative pressure centralized air suction with multi-stage filtration purification. A high-pressure fan creates stable pipeline negative pressure to rapidly capture floating dust and bulk sawdust from various wood processing machines through dedicated suction ports.
Cyclone Separator - Primary Filtration Dust-laden air first enters the cyclone separator for primary coarse filtration. Large wood chips and coarse sawdust are separated via centrifugal gravity and fall into the ash hopper, effectively preventing subsequent filter bag blockage and reducing filtration load.
Bag Filter Chamber - Fine Filtration Fine residual dust enters the bag filter chamber and is trapped on the surface of high-performance polyester filter bags, while clean air penetrates the filter media into the clean air chamber.
Intelligent Pulse Cleaning The intelligent pulse control system periodically triggers electromagnetic pulse valves to spray instant compressed air, blowing accumulated dust off the bag surface into the bottom ash hopper for centralized collection.
Purified Air Discharge Finally, the fully purified air that meets industrial emission standards is discharged outdoors, achieving continuous workshop air purification and maintaining optimal working conditions.
